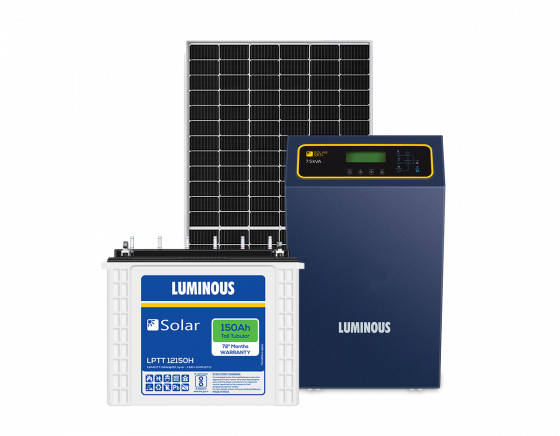

Solar Off-Grid Combo | PCU NXT+ 7.5 KVA/96 V

Name: Solar Off-Grid Combo | PCU NXT+ 7.5 KVA/96 V
SKU: 2177
Price: 379900.00 INR
Availability: InStock

Original price was: ₹673,800.00.Current price is: ₹379,900.00.

+ Free Shipping

Solar PCU – NXT+ 7.5 kVA

Rated AC power – 230 V (Single Phase)
Max Supported Panel Power – 6kW
Input Voltage Range: Voc – 160 V-240 V (extracts upto 30% more power from Panels), Vmp – 120 V-210 V
Charge Controller – MPPT
Nominal Battery Bank Voltage – 96 V (Supports 8 Batteries)

Pure Sine Wave Output

Solar Battery – LPTT12150H

150 Ah Rated Capacity @ C10, 12V
Warranty – 72 Months
Tubular plate Technology – Next generation tall tubular battery with better charge acceptance and longer backup
No of Batteries in Combo – 8

Solar Panel – 550 W / 24 V

Capacity – 550W / 24V, Mono PERC half cut Solar Panel.
Voltage: Voltage at Max Power (Vmp) – 41.95 V, Open Circuit Voltage (Voc) – 49.80 V
Current: Current at Max Power (Imp) – 13.12 A, Short Circuit Current (Isc) – 13.98 A
25 years performance warranty
No of Panels in the Combo – 8

Category: Solar Off-Grid Combo

Product Description of Solar Off-Grid Combo | PCU NXT+ 7.5 KVA/96 V

Solar PCU – NXT+ 7.5 kVA

Luminous Solar PCU NXT+ 7.5 kVA is a BIS certified solar PCU which is the ideal solution for off-grid applications. Designed to offer control, the PCU intelligently optimizes battery charging and power to load among Solar, Battery and Grid power.

Solar Battery – LPTT12150H (150Ah)

Luminous 150Ah solar battery is a BIS certified C10 rated deep cycle battery which is specially designed for longer back up. It comes with a very low maintenance requirement and can handle extreme weather conditions assisting to achieve high temperature performance.

Solar Panel – 550 W/ 24 V

Luminous 550 W/ 24 V Mono PERC half-cut solar panel is a BIS certified solar panel which is suitable for a wide range of applications. It comes with an additional back layer etching which helps the solar cells to absorb reflected or scattered sunlight which leads to increase in overall panel efficiency.

Online Availability	Yes
Net Weight (Kg)	Inverter- 76.3 kg, Battery- 60 kg (filled weight) Panel- 29 kg
Warranty	Inverter- 24 months, Battery- 60 months, Panel- 144 Months
Wattage (Wp)	550 Wp
Open Circuit Voltage, Voc (V)	49.80 V
Capacity	150 H
Maximum Power Voltage Vmp (V)	41.95
Panel Type	Mono PERC Half-Cut
Product Dimensions (LWH)	Inverter- 35.0L63.5B58.9H CM, Battery- 50.2L19.1B44H CM, Panel- 227.9113.43.5 CM
Max. supported panel power (Wp)	6000 Wp
